Designed for exceptional performance in aviation tracking applications, this ADS-B antenna is optimized for 1090 MHz frequency, ensuring reliable reception of transponder signals. With its high gain of 6 dBi, it provides extended range and enhanced signal clarity for critical data collection.
Key Features:
Frequency: 1090 MHz, tailored for ADS-B applications
Gain: 6 dBi for superior signal reception
Low VSWR: < 1.2, ensuring minimal signal reflection and maximum efficiency
Input Impedance: 50 Ohms for seamless compatibility with industry-standard receivers
Connector: Durable N-type Female Connector for secure, stable connections
Dimensions: 60cm length x 20mm ⌀ (antenna)
Temperature Rating: -40 to 85°C (storage), -20 to 85°C (operating)
Weight: 520g (antenna only), 646g (boxed)
Construction: Weatherproof glass fiber
HS Tariff Code: 8517707090
EAN-13 Barcode: 0659424001522
SKU: WNG-003
Box contents:
Antenna: 1090 MHz 6dBi ADS-B Antenna

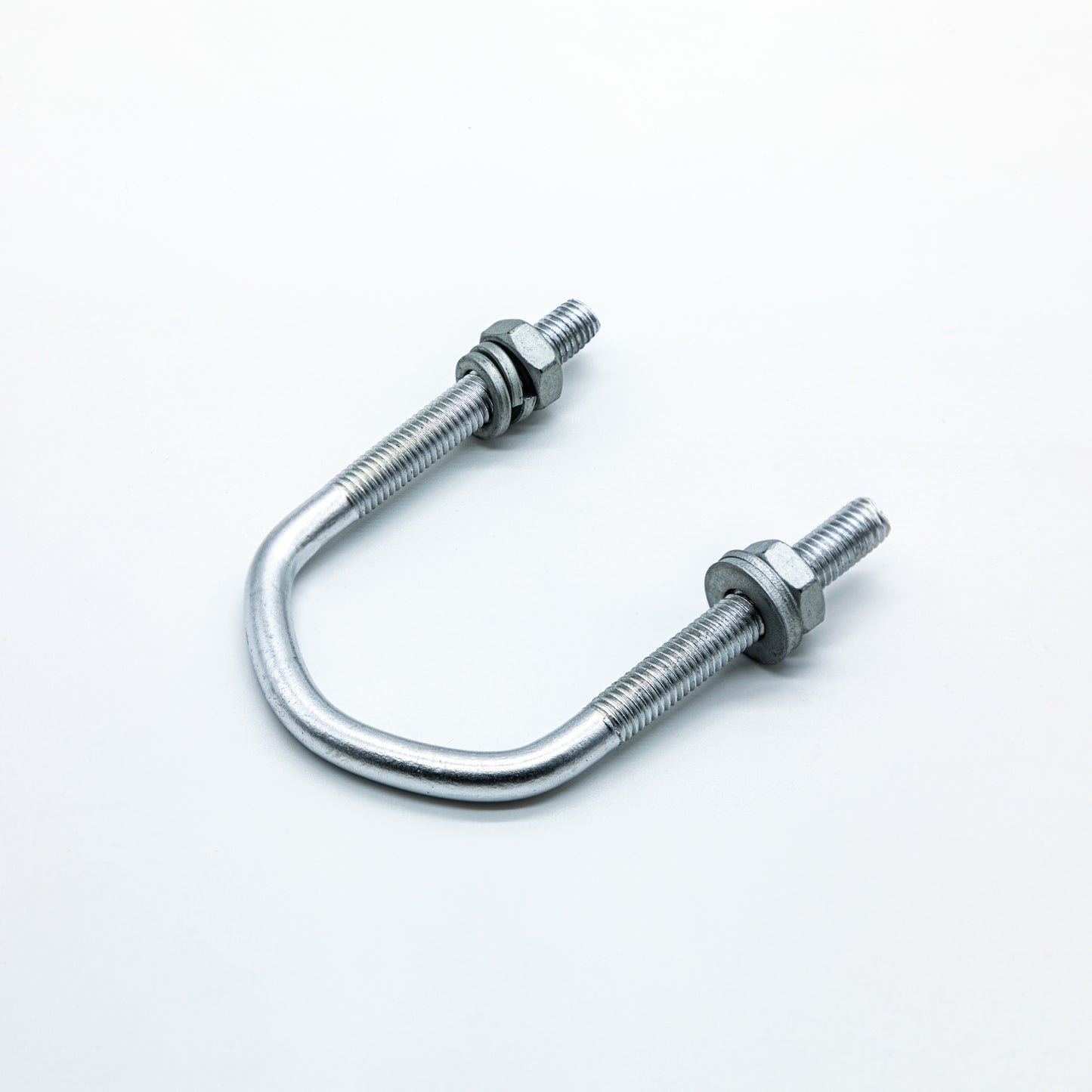

Mounting Brackets: Wall mountable screw bracket and 2 x U-clamps
Adapters: TNC Male to N-Type Male snd TNC Male to SMA Female (can be used on top or side port of HYFIX WB200/MGW310)
Whether you're an aviation enthusiast, air traffic controller, or system integrator, this ADS-B antenna is an essential component for precise and reliable tracking. Its robust build and versatile connectivity make it a dependable choice for both professional and hobbyist applications.
Unlock the full potential of your ADS-B system with this high-performance antenna.
